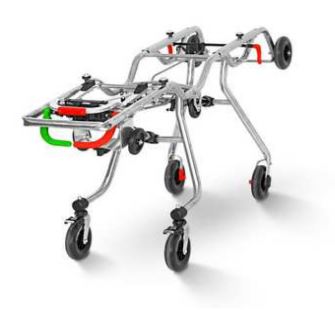

Self-loading Ambulance Stretcher adjustable Cross UP Trolley

Self-loading trolley to be used with the stretcher Cross Up 8409. The legs fold away independently, activating the dedicated commands during loading procedures, and open automatically when unloading. The adjustable heights systems are easy to use, lifting and lowering procedures require minimal effort.

• Color-coded commands
• 2 fixed wheels and 2 pivoting with large diameter to make movement easier
• Brakes on rear wheels
• Adjustable heights system to make easier the transfer procedures of the patient placed on the stretcher

• Length: 1975 ± 10mm
• Width: 580 ± 10mm
• Stretcher support max. height: 910 ± 10mm
• Stretcher support intermed. height: 680 ± 10mm
• Stretcher support min. height: 310 ± 10mm
• Height loading carriage wheel: 65 cm
• Wheels: ø200 mm
• Material: Steel, Al, PE
• Loading capacity: 250 kg
• Weight: 31 ± 1 kg
