Description

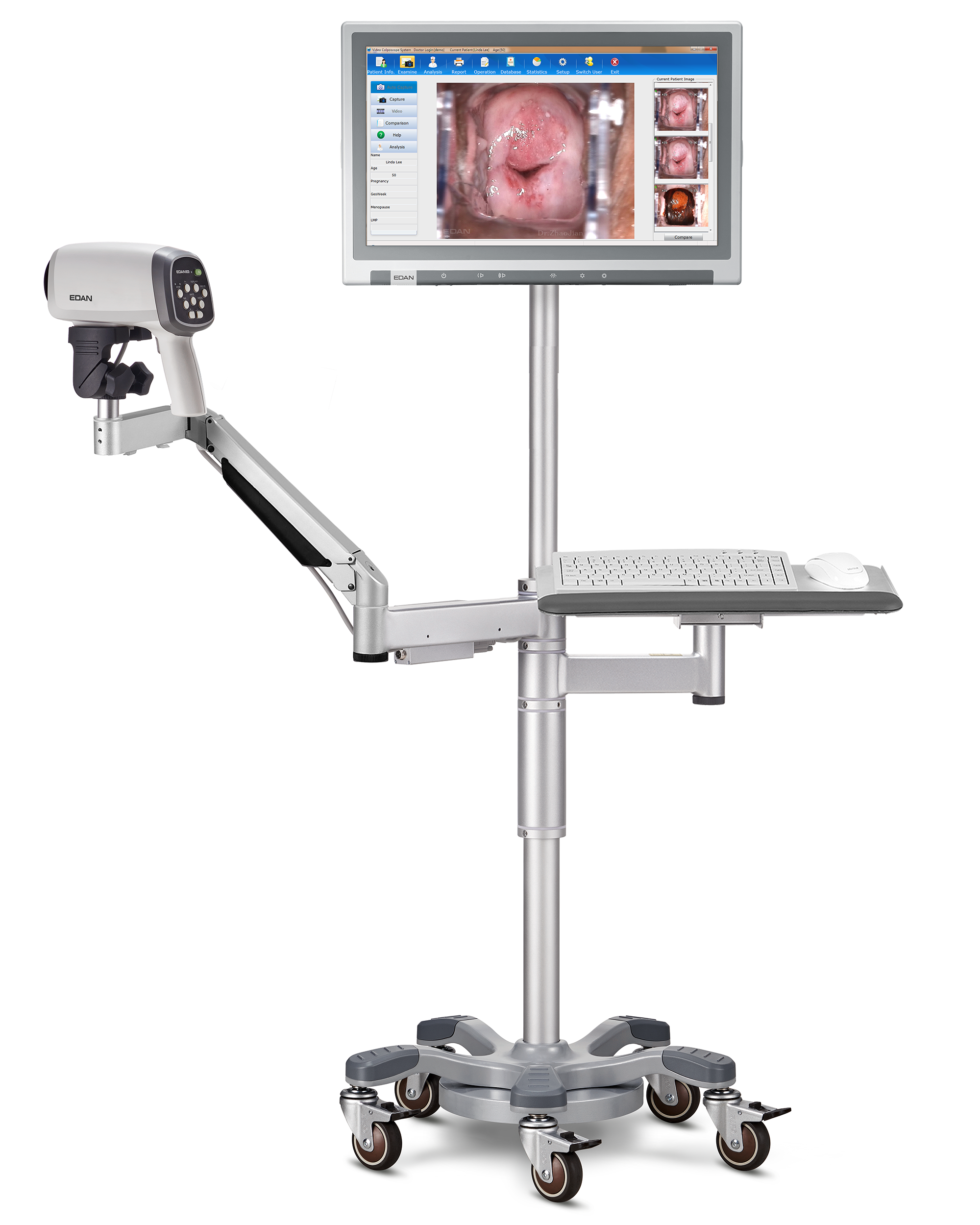

The EDAN C6A HD Video Colposcope is a high-definition digital colposcopy system designed to support gynecologists and healthcare professionals during cervical and gynecological examinations. Combining high-resolution HD imaging, advanced illumination, flexible magnification and intuitive software, the C6A HD provides clinicians with clear and detailed visual information to support efficient examination and documentation.
The system is designed for modern gynecology departments, hospitals, women’s health clinics, obstetric and gynecological practices and diagnostic facilities requiring reliable and adaptable colposcopy technology.
High-Definition Imaging
The C6A HD features a high-definition imaging system with 2,130,000 pixels, providing detailed visualization during colposcopic examinations.
With manual and automatic focus modes, clinicians can quickly adjust the image according to the examination requirements.
Key Imaging Features
- HD digital imaging
- 2,130,000-pixel image sensor
- Manual and automatic focus
- Magnification range of 1x to 60x
- System resolution of ≥1000 TVL
- Spatial resolution of ≥14 lp/mm
- Image geometric distortion of ≤1%
- Signal-to-noise ratio of ≥50 dB
- HD video output
- White light illumination with 3 levels
- Electronic green filter with 3 levels
Powerful Magnification & Illumination
The C6A HD provides a broad 1x–60x magnification range, allowing clinicians to examine cervical structures at different levels of detail.
The specialized SMD LED light source provides high illumination during examinations:
- ≥3,000 lx at a 300 mm operating distance
- ≥6,000 lx at a 200 mm operating distance
The system provides multiple operating distances and fields of view to support both general examination and detailed cervical assessment.
R-way Cervical Health Assessment Software
The C6A HD incorporates R-way cervical health assessment software, providing tools for cervical disease evaluation, patient management and examination tracking.
The software supports digital documentation and efficient management of patient examination information, helping healthcare professionals maintain an organized clinical workflow.
Efficient Clinical Workflow
The C6A HD is designed with ease of use and clinical efficiency in mind. One-handed adjustments allow clinicians to conveniently control focus, magnification and image capture during examinations.
The system can be configured with a rolling trolley or swing-arm stand, providing flexibility for different clinical environments.
Complete Video Colposcope Package
The EDAN C6A HD configuration includes:
- EDAN C6A HD Video Colposcope
- Trolley with Drawer
- Mouse – 1 each
- Printer – 1 each
- Keyboard – 1 each
- A4 or A6 Printing Paper – 1,000 sheets
- PC Software – 1 each
- Dust Cover – 1 each
The supplied trolley provides convenient mobility and additional storage for accessories and consumables.
Technical Specifications
Dimensions & Weight
Vertical Stand:
- Chassis diameter: ≤ Ø480 mm
- Weight: ≤8 kg
Swing Arm Stand:
- Chassis diameter: ≤ Ø580 mm
- Weight: ≤30 kg
Imaging
- Pixels: 2,130,000
- Focus: Manual and Auto
- Output Signal: HD
- Video Mode: PAL/NTSC
- Magnification: 1x–60x
Interfaces
- 3-pin aviation interface
- USB B
- DB9 interface
- DC port
- HD signal interface
Operating Conditions
- Temperature: +5°C to +40°C
- Relative Humidity: 25%–80% RH, non-condensing
- Atmospheric Pressure: 86–106 kPa
- Operating Frequency: 50/60 Hz
Safety & Compliance
The system complies with applicable medical electrical equipment standards, including:
- IEC 60601-1:2005
- EN 60601-1:2006
- IEC 60601-1-2:2014
- EN 60601-1-2:2015
The equipment is classified as Class I equipment with internal power supply. The foot switch is rated IPX8 for protection against water immersion.
Ideal Applications
The EDAN C6A HD Video Colposcope is suitable for:
- Gynecology departments
- Hospitals
- Women’s health clinics
- Obstetric and gynecological practices
- Cervical health assessment
- Colposcopic examinations
- Diagnostic and specialist healthcare facilities
RT2-2025 Product Information
Product Code: ED.C6AHD-RT2-04-006
This configuration includes the video colposcope trolley with drawer, PC software, printer, keyboard, mouse, printing paper and protective dust cover as part of the required starter package.
Brand: EDAN
Model: C6A HD
Product Type: HD Digital Video Colposcope
Configuration: Video Colposcope with Trolley and Starter Consumables Package
Product Code: ED.C6AHD-RT2-04-006
