Description

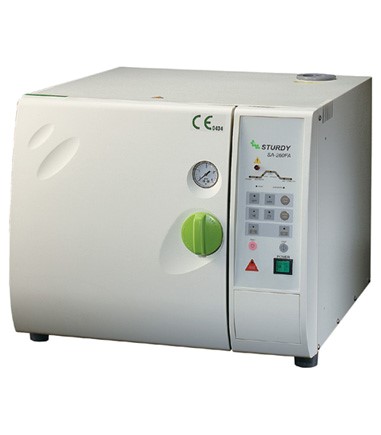

Table Top Sterilizer, 16 & 23 L, Microprocessor Control System S Class
FEATURES :
- Innovative and versatile autoclave, which combines compact and elegant design with high performance, reliability and safety
- Microprocessor control system. Fully Automatic control from add-water to sterilization, to dry and 9 programs for your professional selection
- Special Liquid Sterilization program, it is the special function for laboratory and scientific use.
SPECIFICATIONS:
| Overall Dimensions | 594mm(D) x 522mm(W) x 410mm(H) | 655mm(D) x 533(W) x 442mm(H) |
| Chamber Dimension | 230mm x 410mm | 260mm x 450mm |
| Capacity | 16ℓ | 23ℓ |
| Net Weight | 48kg | 51kg |
| Program Display | Yes | Yes |
| Power Supply | 230V 50 / 60 Hz | 230V 50 / 60 Hz |
| Power Consumption | 1.9KW, 9 Amp | 2.7KW,12 Amp |
| Auto-fill Water System | Yes | Yes |
| Water capacity of water tank | 4200cc | 4200cc |
| Auto Drying | Yes | Yes |
| Door Closed, Low Water, Over Heat Display | Yes | Yes |
| Safety Devices | · Pressure Safety Valve
· Over Temperature Protection · Over Pressure Protection Switch · Door Lock Indication · Pressure Door Auto Lock · Water Level Sensor (Tank & Chamber) · Electric overload protection (20Amp. No fuse Breaker x 2) |
· Pressure Safety Valve
· Over Temperature Protection · Over Pressure Protection Switch · Door lock Indication · Pressure Door Auto Lock · Water Level Sensor (Tanks & Chamber) · Electric overload protection (20Amp. No fuse Breaker x 2) |
| Sterilization Temperature | 121°C / 135°C | 121°C / 135°C |
| 121°C/135°C, rapped/Unwrapped, dry/undry, Liquid, program | Yes
|
Yes |
| Standard Accessories | Sterilization box x 1 ; Heater cover x 1 | Sterilization box x 1 ; Heater cover x 1 |
| Optional Accessories | · Sterlization Tray Set
· Tray x 3 · Tray frame x 1 · Tray holder x 1 · Spring Holder x 2 |
· Sterlization Tray Set
· Tray x 3 · Tray frame x 1 · Tray holder x 1 · Spring Holder x 2 |
| Quality Standard | CE |
Order Codes : MHE-TS16LMCS / MHE-TS23LS
