Description

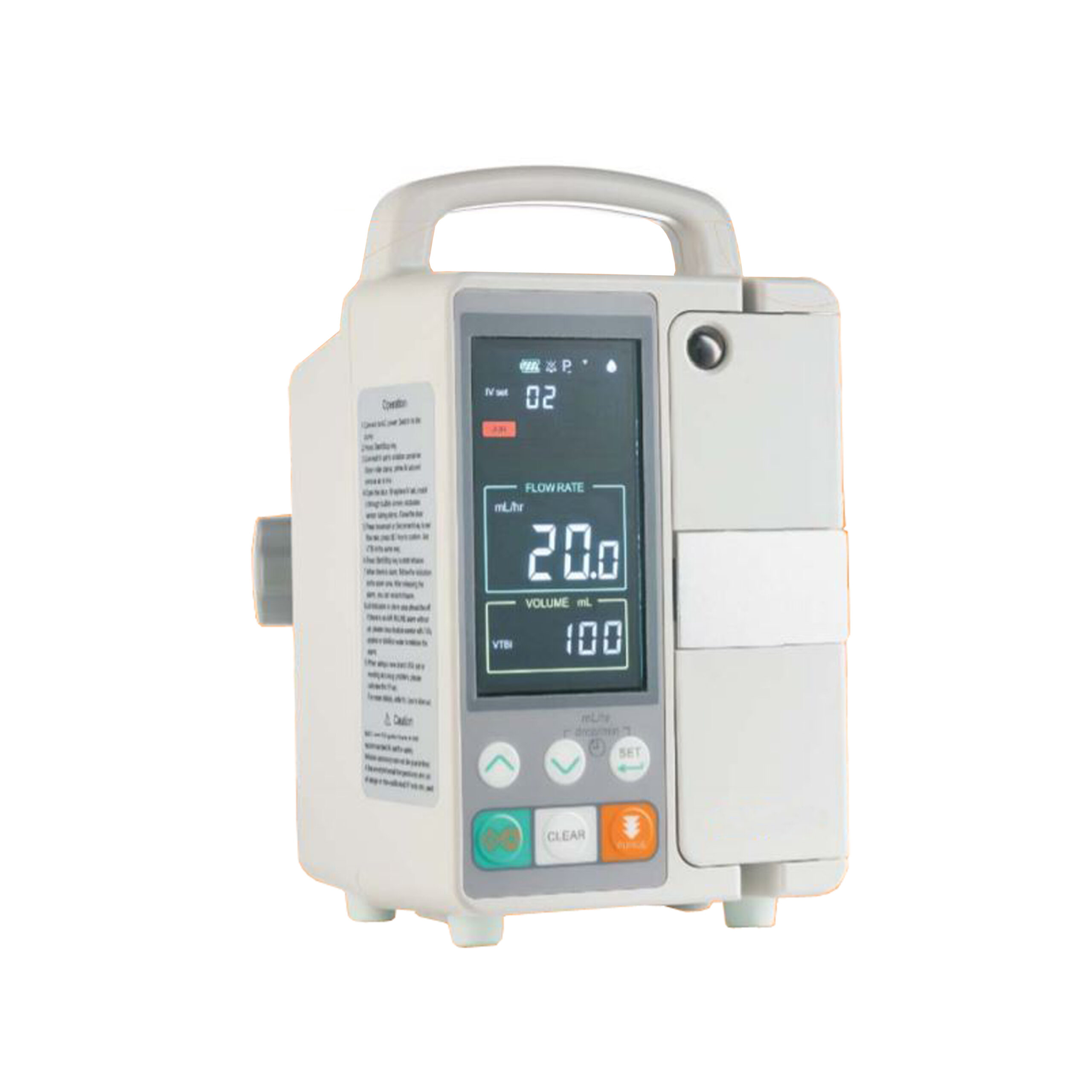

Infusion Pump KL-8052N.
An infusion pump is a medical device that delivers fluids, such as nutrients and medications, into a patient’s body in controlled amounts. Infusion pumps are in widespread use in clinical settings such as hospitals, nursing homes, and in the home.
Specifications
| Model | KL-8052N |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 0.1-1500 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus | 100-1500 ml/h (in 1 ml/h increments)Purge when pump stops, bolus when pump starts |
| Bolus volume | 1-20 ml (in 1 ml increments) |
| Accuracy | ±3% |
| VTBI | 1-9999 ml |
| Infusion Mode | ml/h, drop/min, time-based |
| KVO Rate | 0.1-5 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
| Additional Features | Real-time infused volume / bolus rate / bolus volume / KVO rate, automatic power switching, mute key, purge, bolus, system memory, key locker, change flow rate without stopping the pump |
| Occlusion Sensitivity | High, medium, low |
| Air-in-line Detection | Ultrasonic detector |
| Wireless management | Optional |
| Power Supply, AC | 110/230 V (optional), 50-60 Hz, 20 VA |
| Battery | 9.6±1.6 V, rechargeable |
| Battery Life | 6 hours at 125ml/h |
| Working Temperature | 10-40℃ |
| Relative Humidity | 30-75% |
| Atmospheric Pressure | 700-1060 hpa |
| Size | 174*126*215 mm |
| Weight | 2.5 kg |
| Safety Classification | Class Ⅰ, type CF |
