Description
Introducing the next-generation HD digital colposcope series, offering cutting-edge HD imaging, intuitive software, and a flexible workstation, designed for gynecologists performing colposcopic examinations. With high precision and adaptability, this system is ideal for enhancing clinical workflows and improving diagnostic accuracy.
Technical Specifications
Dimensions
- Workstation Size: 640 mm (D) × 510 mm (W)
- Vertical Stand: Chassis diameter ≤ Ø 480 mm
- Swing Arm Stand: Chassis diameter ≤ Ø 580 mm
Weight
- Workstation: ≤ 58 kg (Safe Load)
- Vertical Stand: ≤ 8 kg
- Swing Arm Stand: ≤ 30 kg
Pixel & Focus
- Pixels: 2,130,000
- Focus Modes: Manual and Auto
Output Signal
- Signal Type: HD
Illumination
- At 300 mm operation distance: SMD light source ≥ 3000 lx
- At 200 mm operation distance: ≥ 6000 lx
Magnification
- Range: 1x ~ 60x
- Operation Distance for 3x Magnification: 150 – 350 mm
- Operation Distance for 18x Magnification: 240 – 330 mm
- Field of View:
- At 3X: ≥ φ 100 mm
- At 18X: ≥ φ 15 mm
- Maximum Magnification: ≥ φ 5 mm
Resolution
- System Resolution: ≥ 1000 TVL
- Spatial Resolution: ≥ 14 lp/mm
- Image Geometric Distortion: ≤ 1%
- SNR (Signal-to-Noise Ratio): ≥ 50 dB
Imaging Modes
- White Light (3 levels)
- Electronic Green Filter (3 levels)
Capture Box Interface
- Capture Box Interface: 3-pin aviation interface
- Other Interfaces: USB B, DB9 interface, DC port, HD signal interface
Power and Safety
- Power Switch
- Fuse: Ø 5 mm x 20 mm, Model T3.15AH 250V
- Voltage:
- 110 V at 2.0 A
- 220 V at 1.0 A
- Operating Frequency: 50 Hz/60 Hz
Operating Conditions
- Temperature Range: +5 ℃ to +40 ℃ (41 ℉ to 104 ℉)
- Relative Humidity: 25% RH to 80% RH (non-condensing)
- Atmospheric Pressure: 86 kPa to 106 kPa
Video Mode
- PAL/NTSC
Standards Compliance
- IEC 60601-1:2005, EN 60601-1:2006, IEC 60601-1-2:2014, EN 60601-1-2:2015
- Anti-electric Shock: Class I equipment with internal power supply
- Degree of Protection:
- Device/Camera: Ordinary equipment
- Foot Switch: IPX8 rated (water immersion protection)
Product Highlights
Crystal Clear Imaging
The C6 HD and C6A HD models deliver exceptional image quality, equipped with high-definition cameras and a specialized LED light source, ensuring precision and clarity during gynecological examinations.
Streamlined Workflow
Enjoy the convenience of one-handed adjustments, allowing users to effortlessly focus, zoom, and capture images, enhancing efficiency during patient evaluations.
R-way Cervical Health Assessment
Exclusive built-in software provides advanced cervical disease evaluation, alongside comprehensive patient management and tracking.
Versatile and Flexible Setup

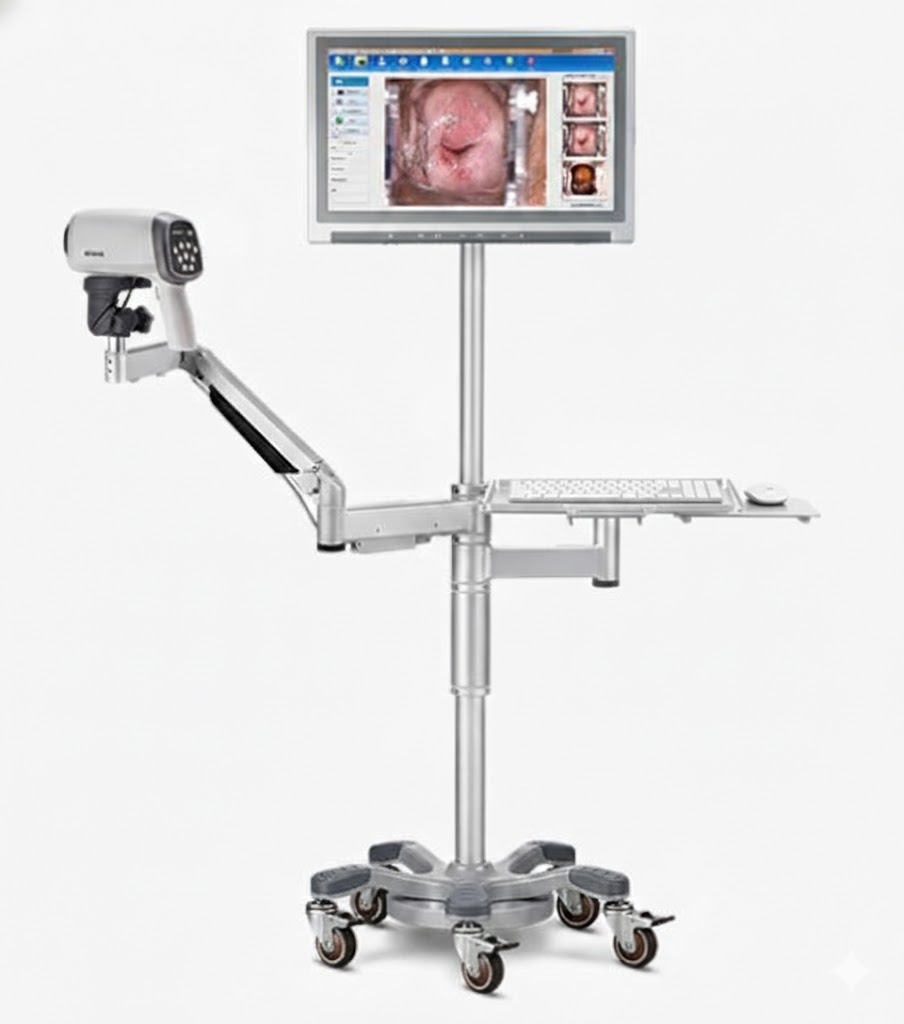

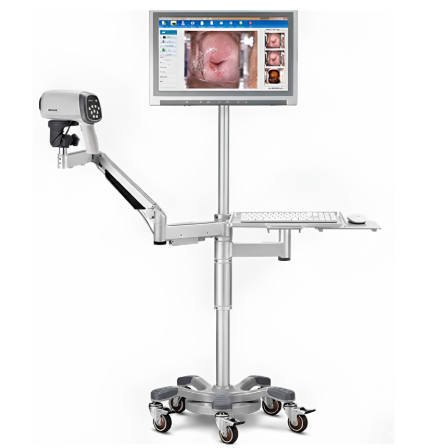

The C6 HD includes a built-in monitor and workstation, while the C6A HD offers flexibility with rolling and swing-arm stand options, tailored for diverse clinical setups.
With its advanced technology and adaptable design, this colposcope series is the perfect solution for modern gynecological practices looking to enhance precision and patient care.
