Description
Combination Bedpan and Wash-Up Sink Left or Right Hand
This EC Combination Bedpan and Wash-Up sink is manufactured from 304 (18/10) stainless steel. The unit is fitted with a 150mm high integral splash back to the rear and a 15mm deep hospital bead 100mm apron to front and sides. Unit also comes complete with two pressed seamless bowls with the sluice bowl having an integral flushing rim and a 38mm diameter inlet pipe for the flush valve .The waste outlet on the sluice bowl is a 110mm and the rinse bowl size 610x460x230mm deep with a 40mm waste discharging into sluice bowl. The underside sprayed with vermin proof bitumastic sound deadening and has a galvanised mild steel backing sheet. Unit supplied complete with factory fitted Cobra FM 1.00 flush valve, 35mm water supply through 50mm sleeve on unit, CP171/041 pillar mixer with over-arm swivel spout, CP297 pillar mixer with retractable hand spray, 15mm bedpan spray nozzle, 15mm bottle spray nozzle (both nozzles activated by two 15mm quarter turn elbow action valves)
Features:
- 150mm high integral splash back
- 15mm deep hospital bead
- 100mm apron to front and sides
- 2x presed seamless bowls
- sluice bowl having an integral flushing rim and 38mm diameter inlet pipe for the flush valve.
- This unit is available in either left or right hand upon request.
Dimensions & Code:
- Rinse Bowl: 610x460x230mm deep with a 40mm waste discharging into sluice bowl.

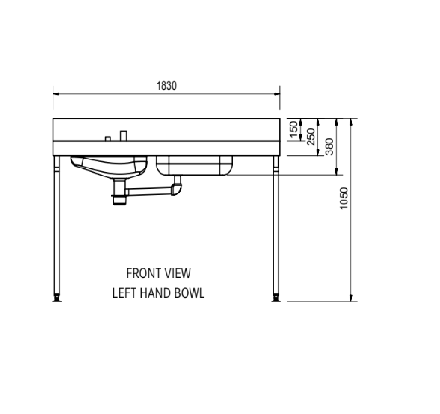

- Unit: 1830 x 685 mm
- Product Code: 2990001
