Airnext Handheld Spirometer

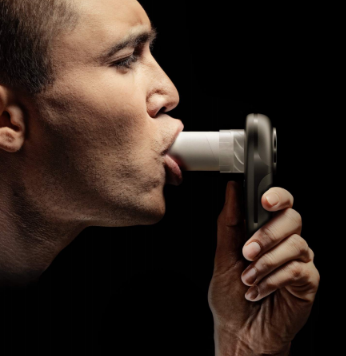

Take a slow deep breath –
as deep as you can.

Close your lips around the
opening of the turbine.

Blow as hard and as fast as
you can into the mouthpiece.

Keep going until you
have completely
emptied your lungs.

You should rest
15 to 30 seconds
before starting a
new test.

Perform a minimum
of 3 tests for high
quality results.
The app displays the
best result.

Open app settings
to check battery
levels.

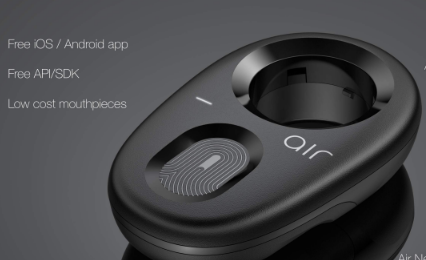

Air Next works with iOS and Android devices and connects via bluetooth. Air Next is powered by 2 x 1.5 V AAA alkaline batteries.
Air Next is designed to work with single-use NuvoAir disposable turbines.

When performing a spirometry test, the user exhales into the turbine. The airflow generated sets a rotor in mo-
tion. Air Next registers the speed of the spinning rotor, converts it and transfers the data via Blue-
tooth to the smartphone app.





Description

This Airnext Handheld Spirometer features:

Flow/volume measurement system Bi-directional optical
Measurement method Infrared interruption
Power supply 2 x 1.5V AAA alkaline bateries
Dimensions 98 x 62 x 26 mm
Weight 75g
Flow range 0 – 14 L/s
Volume accuracy ± 3%
Flow accuracy ± 5%
Dynamic resistance at 12 L/s <0.5 cm H2O/L/s
Operating conditions T: min +10°C/max +40°C
RH: min 10%/max 95%
ALT: max 2000m
Conditions of storage T: min -20°C/max +60°C
RH: min 10% /max 95%
P: min 500mBar/max
ALT: ≤ 5000m
Life expectancy 10 years
Regulations applicable: MDD 93/42/EEC
ISO 26782
ISO 23747
Electrical Safety IEC 60601-1
Electro Magnetic Compatibility
IEC 60601-1-2
